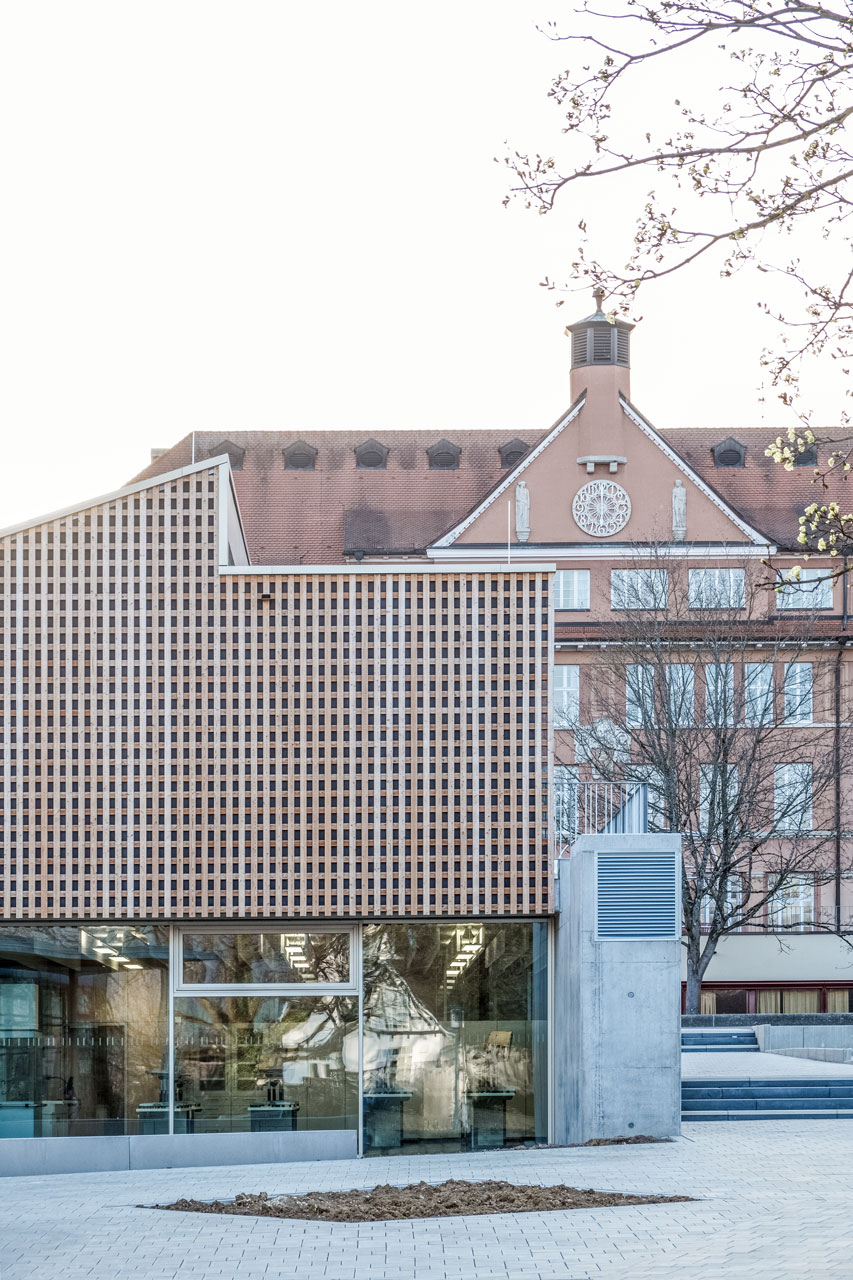

The new extension of the Schubart-Gymnasium in Aalen, was designed as a zero-energy house. This means that based on a primary energy balance the new building will generate, at least, as much energy locally and renewably as the building uses in the course of a year. The balance sheet not only includes the building operations for heating, ventilation and lighting, but also the energy demands for user electricity.

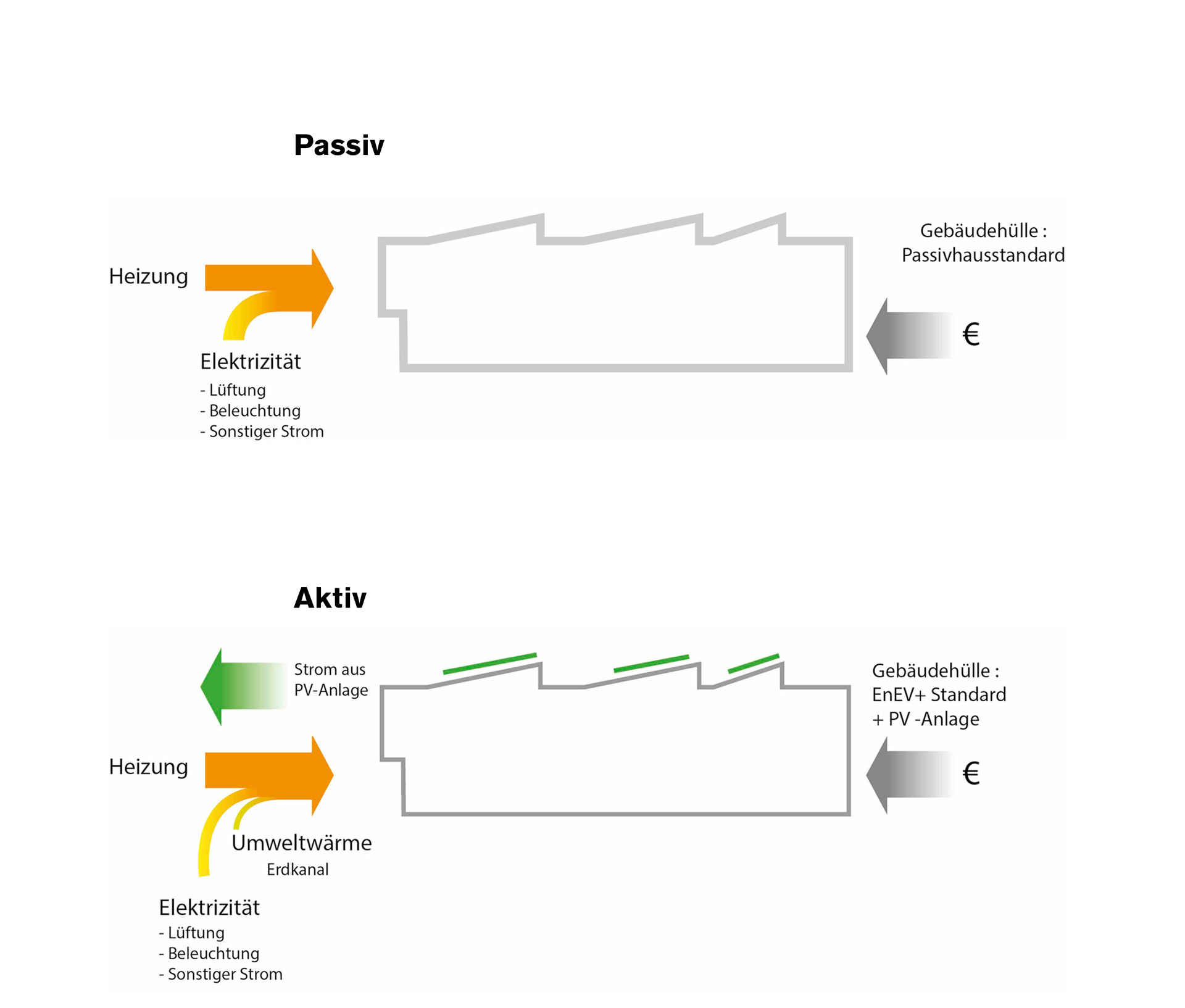

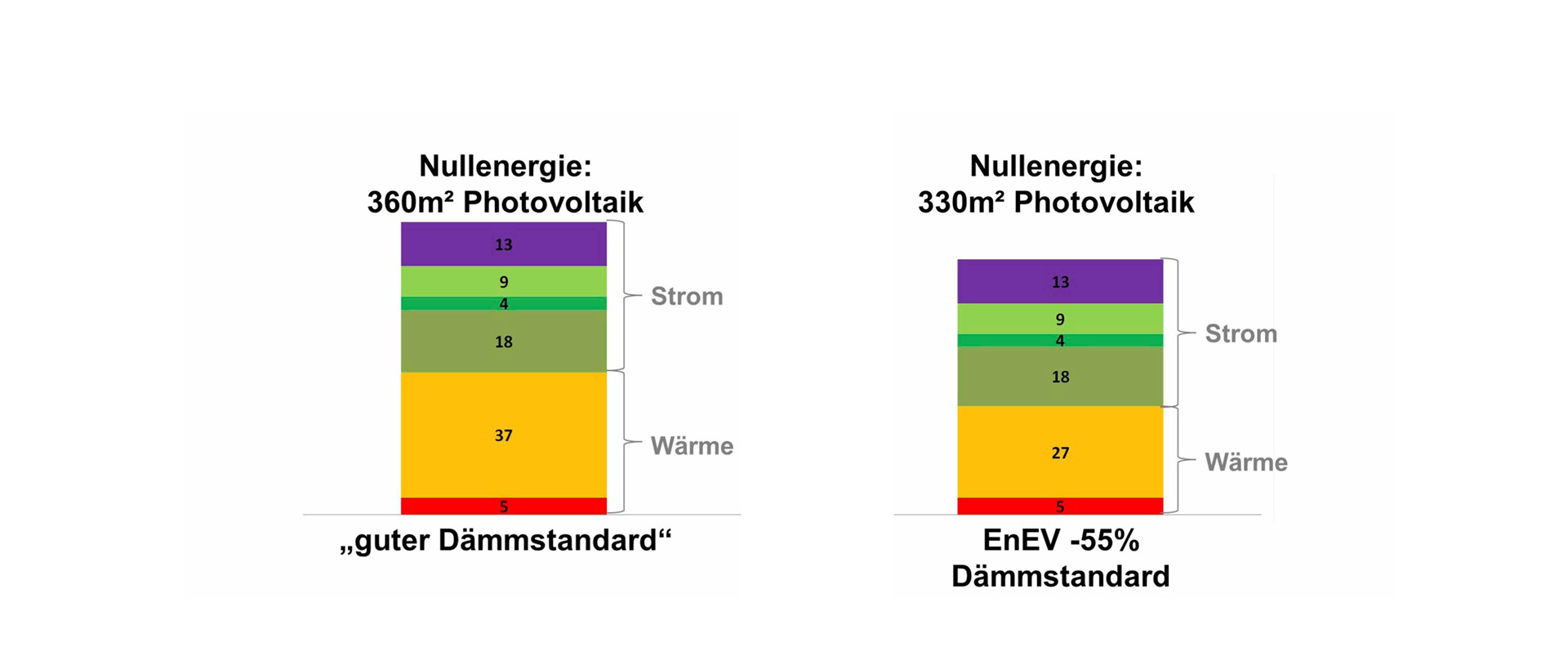

Another special feature of this project is the holistic view of the exterior skin design. Detailed simulations have shown that the energy saving potential of additional insulation is relatively small, but the additional cost is very high. Therefore, no passive house standard has been realized. Furthermore, during the planning process the objective has changed from an initial passive house to an active house.
The developed climate concept includes a hybrid ventilation system that combines a mechanically supported ventilation with natural ventilation via operable windows. The amount of air supplied via a displacement ventilation in the classrooms is considered the basic requirement which is supported by opening the windows during breaks. The combination of the two strategies ensures an excellent air quality.
To optimize the ambient temperature in summer, the mechanical supply air is pre-conditioned passively via an earth duct. Effective night flushing via operable ventilation elements is also part of the climate concept. Upstairs skylights are provided, which are utilized for night ventilation and also bring daylight into the classrooms.
A cogeneration unit in a subsidiary building provides heat for the new extension wing. The photovoltaic system on the roof generates enough renewable electricity to achieve the objective of a zero-energy building.

2020 Hugo-Häring-Auszeichnung
2021 Nomination Deutscher Nachhaltigkeitspreis
2020 AIT Award Auszeichnung Bildung
2020 Bundespreis Umwelt & Bauen
2020 DGNB Klimapositiv
2021 German Design Award Special
2020 Iconic Awards Innovative Architecture
2020 Architecture, Construction & Design Awards Second Award | Public Building (Built)
2020 Effizienzpreis Silber, Bauen & Modernisieren Landeswettbewerb Baden-Württemberg
2021 Green Solutions Award Deutschland
2021 Bundespreis Ecodesign
2022 Innovationspreis Ostwürttemberg

more: Liebel/Architekten & TRANSSOLAR >

Climate-positive: Schubart-Gymnasium

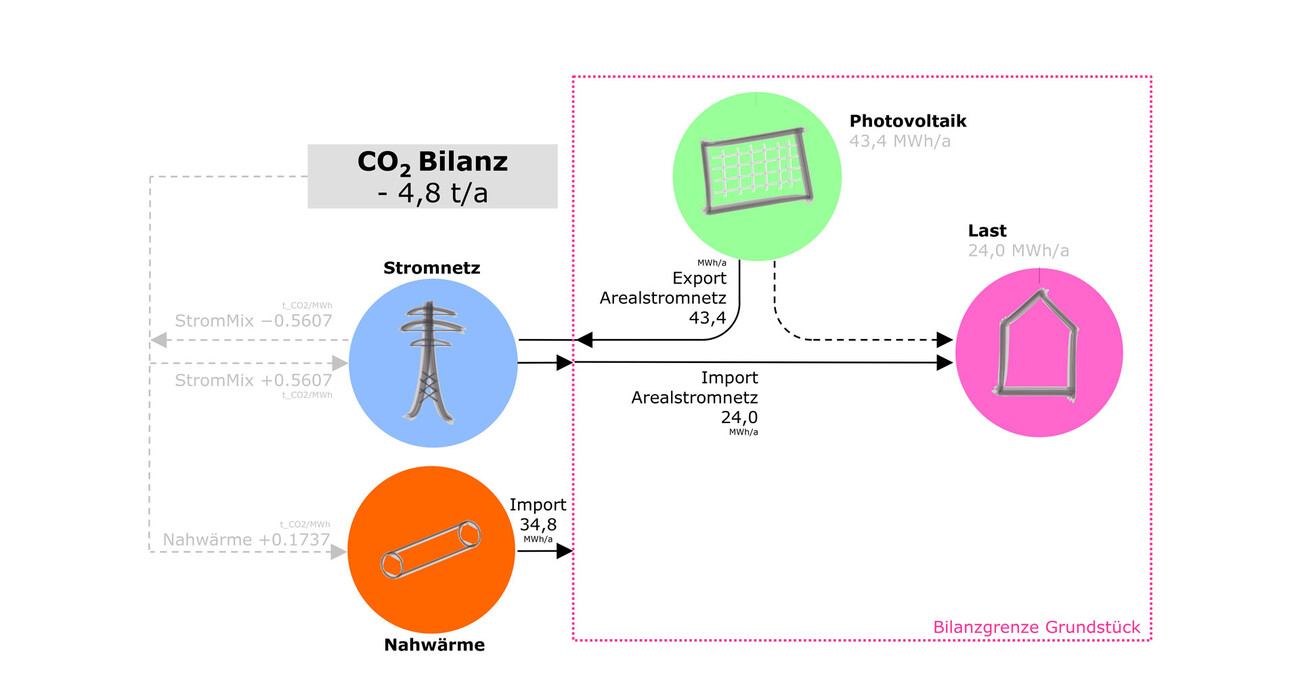

CO2-Bilanzierung im 1. Betriebsjahr 2020/2021

Climate-positive: Schubart-Gymnasium
Climate-positive: Schubart-Gymnasium

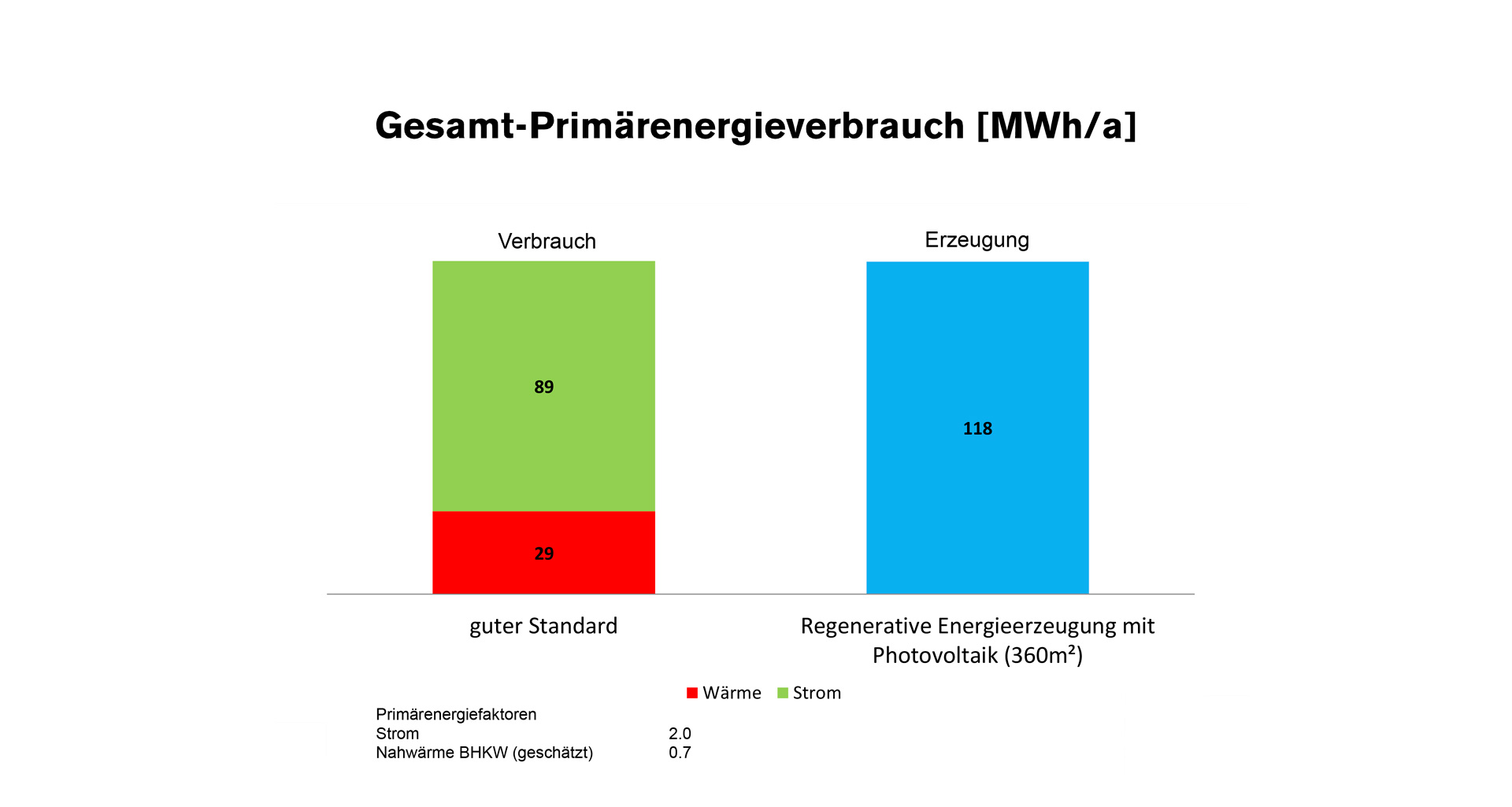

Comparison primary energy

Climate-positive: Schubart-Gymnasium

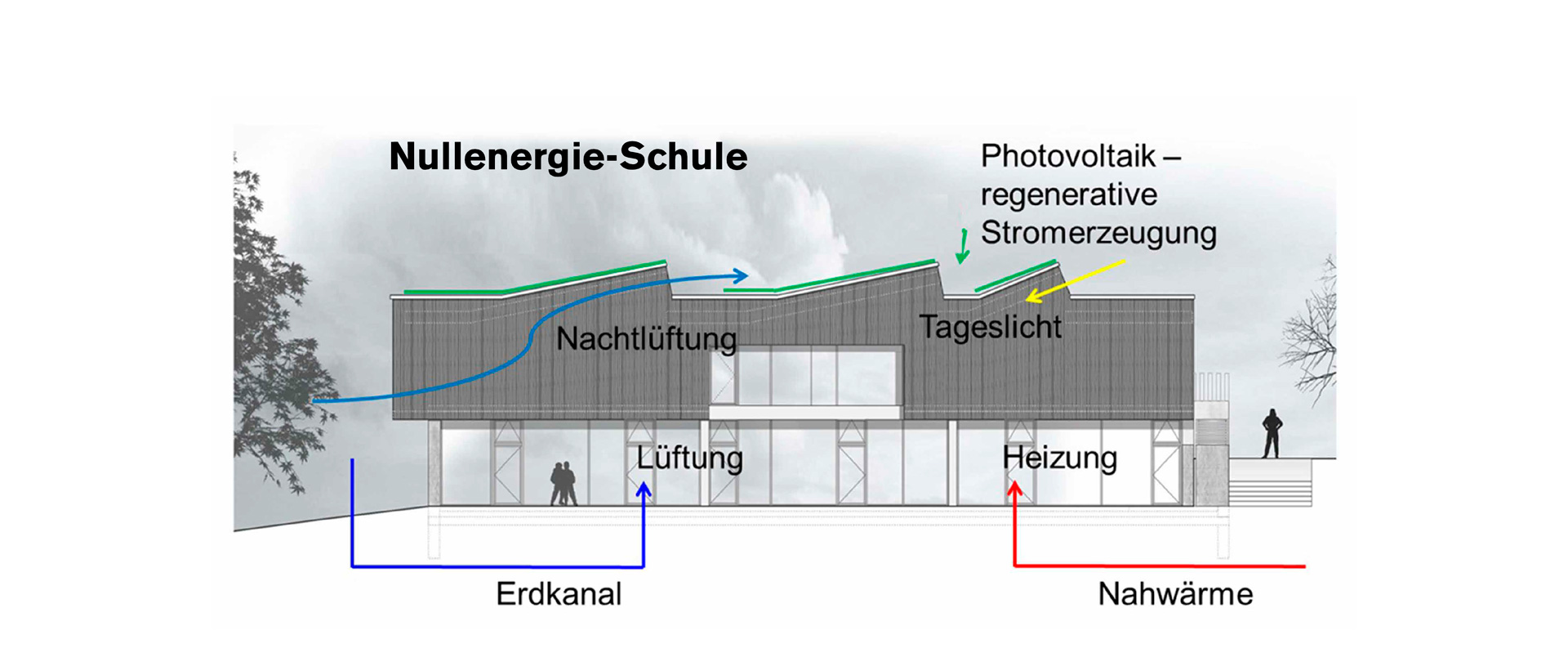

Overall energy concept

Climate-positive: Schubart-Gymnasium

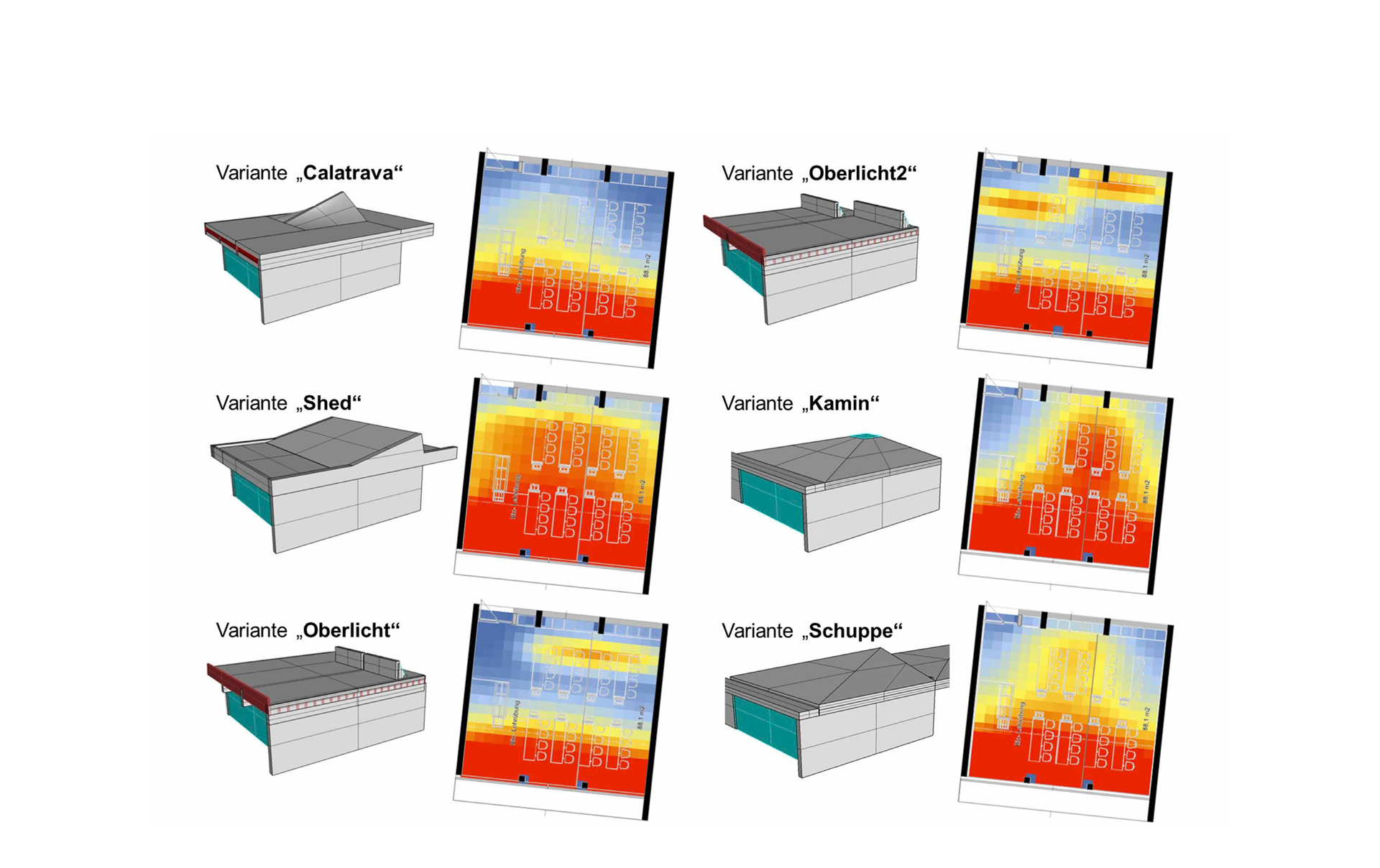

Study skylights

Climate-positive: Schubart-Gymnasium

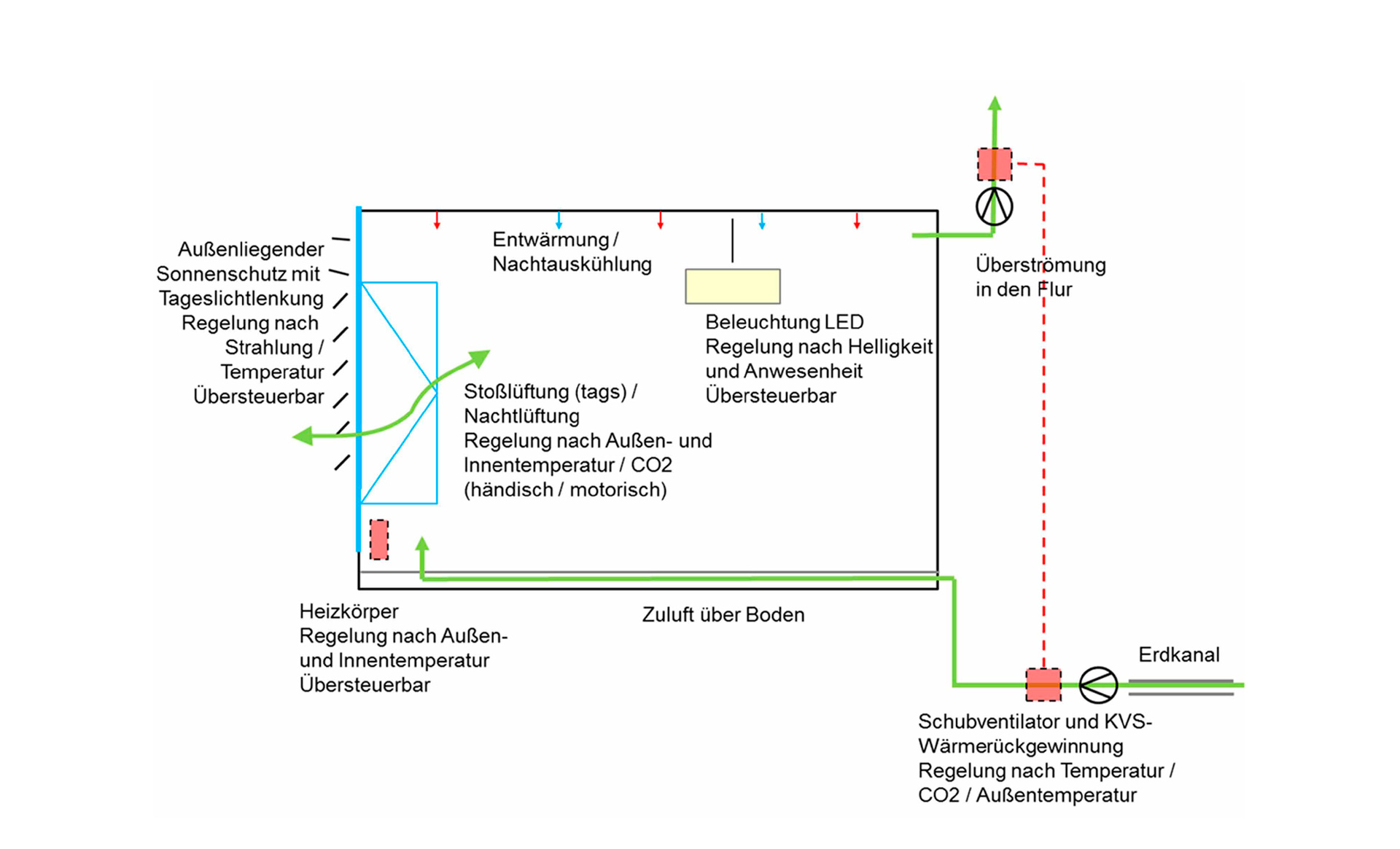

Energy concept

Climate-positive: Schubart-Gymnasium

Total energy demand

Climate-positive: Schubart-Gymnasium

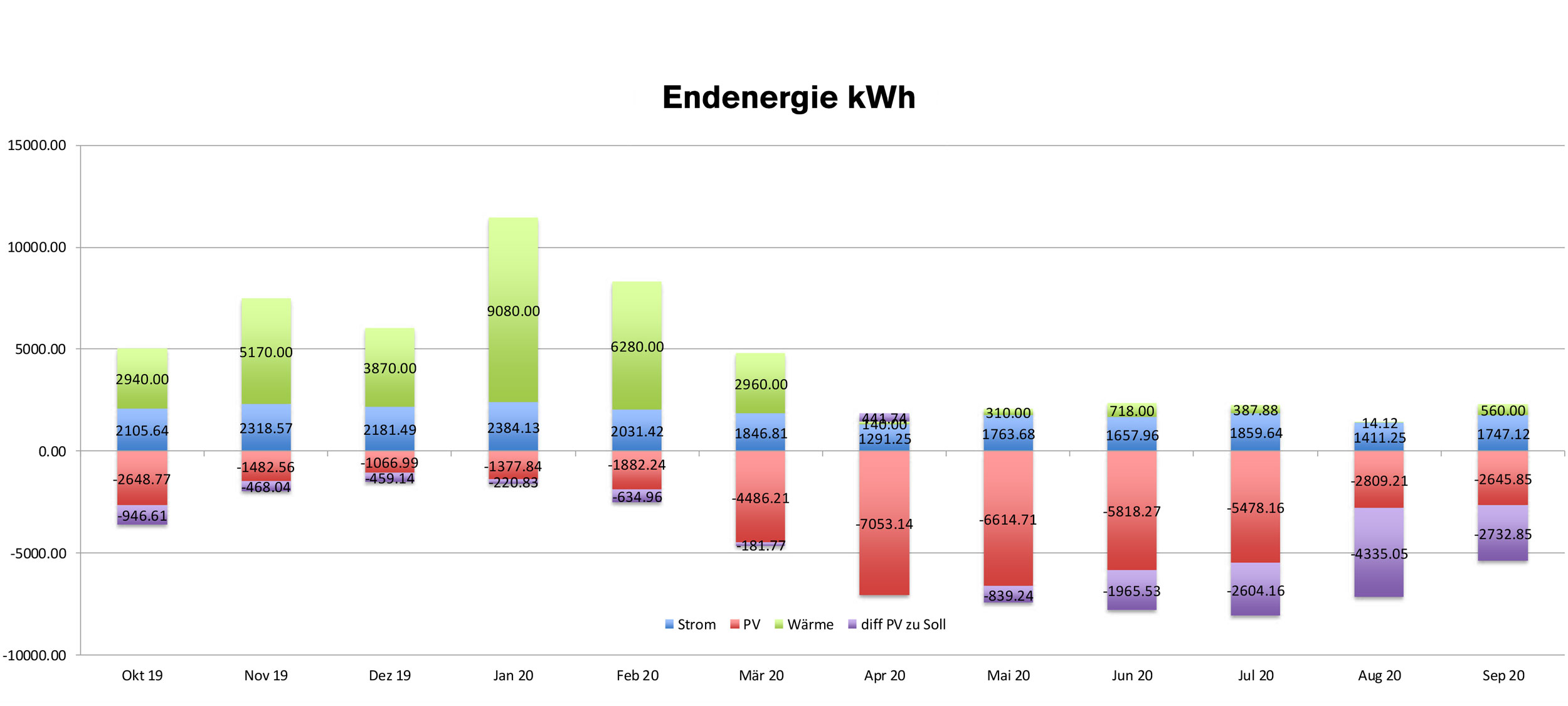

Monitoring – Messung Endenergie

Climate-positive: Schubart-Gymnasium

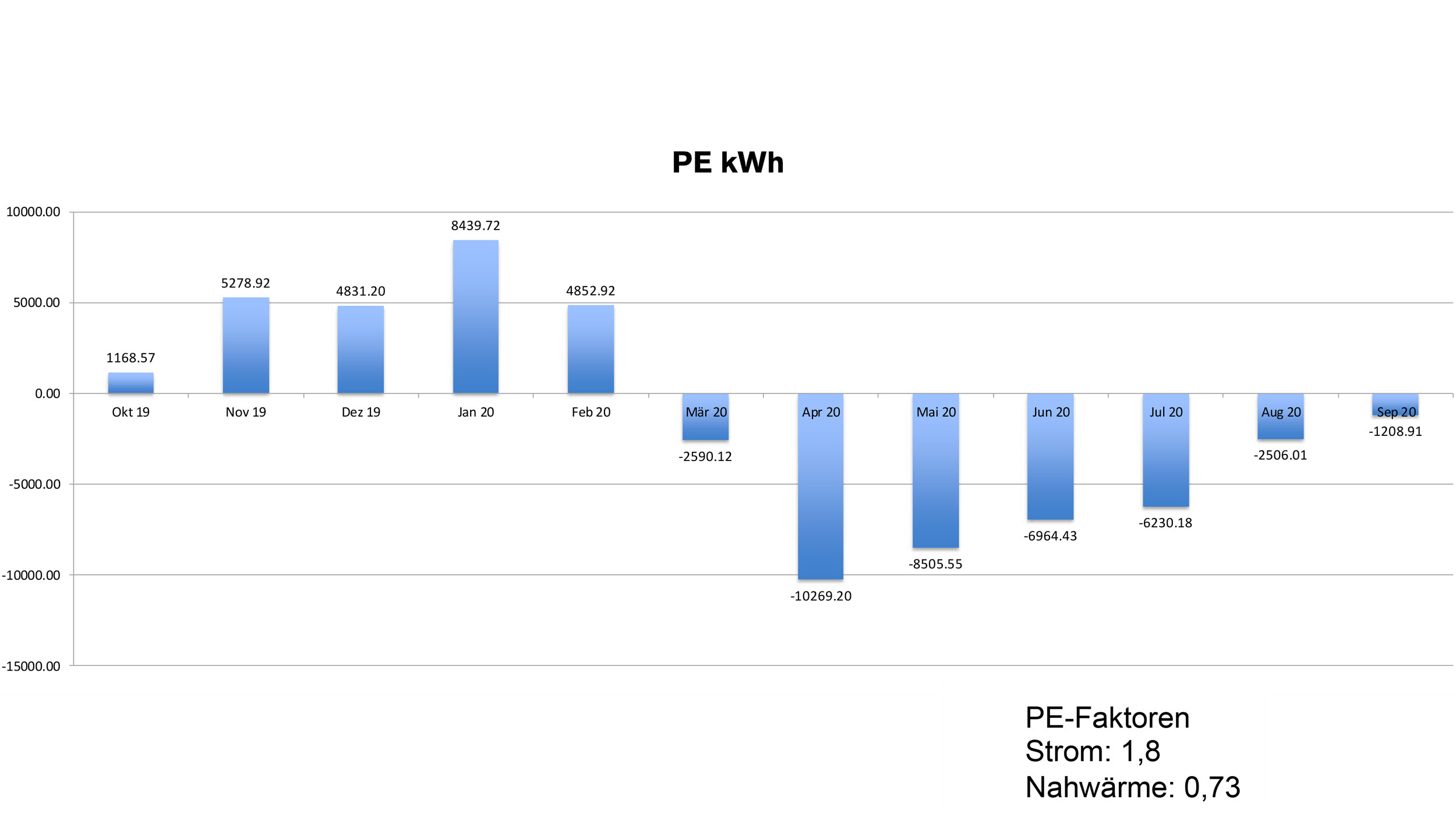

Monitoring – Primärenergie; -13,7 MWh

Climate-positive: Schubart-Gymnasium

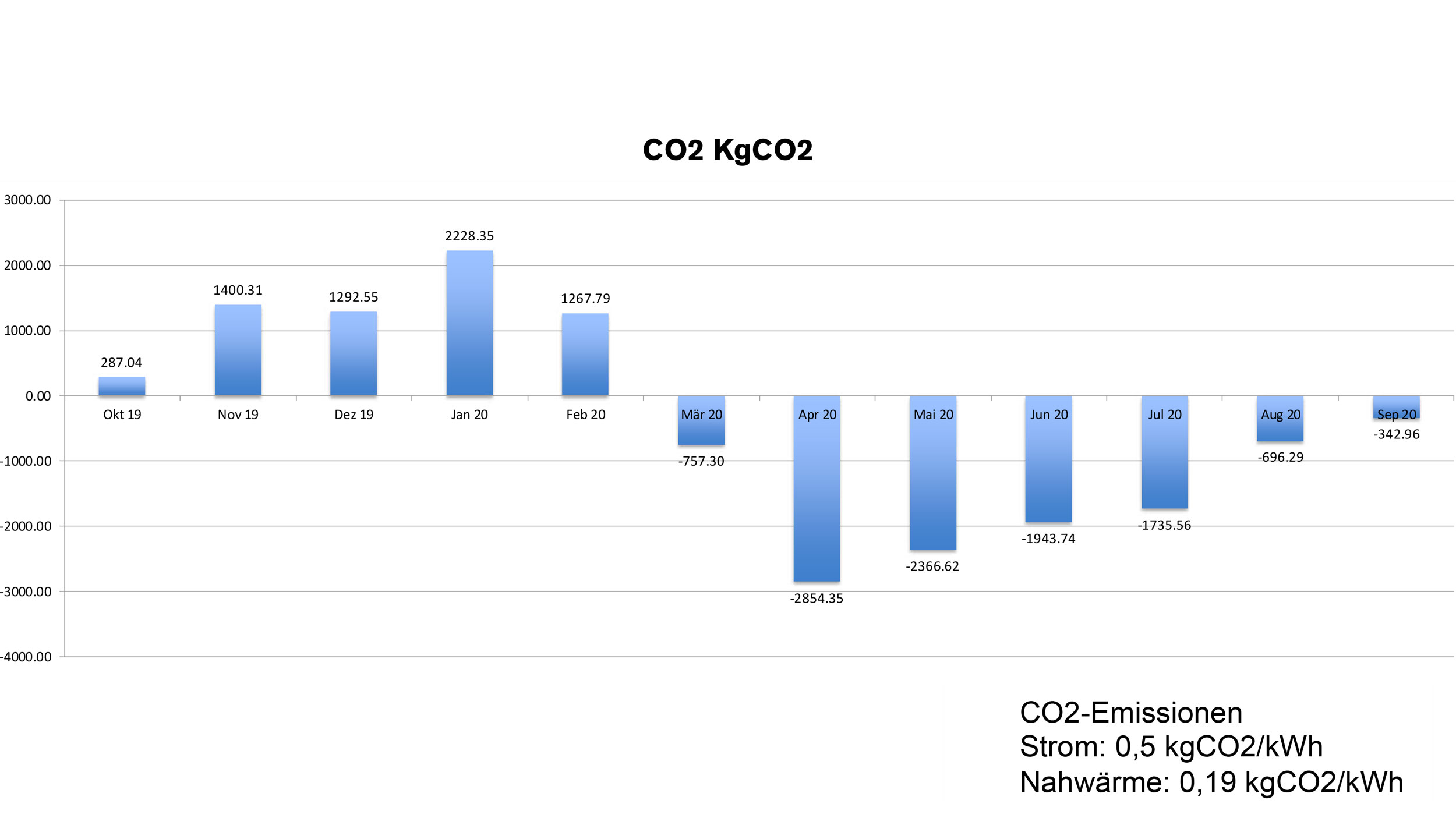

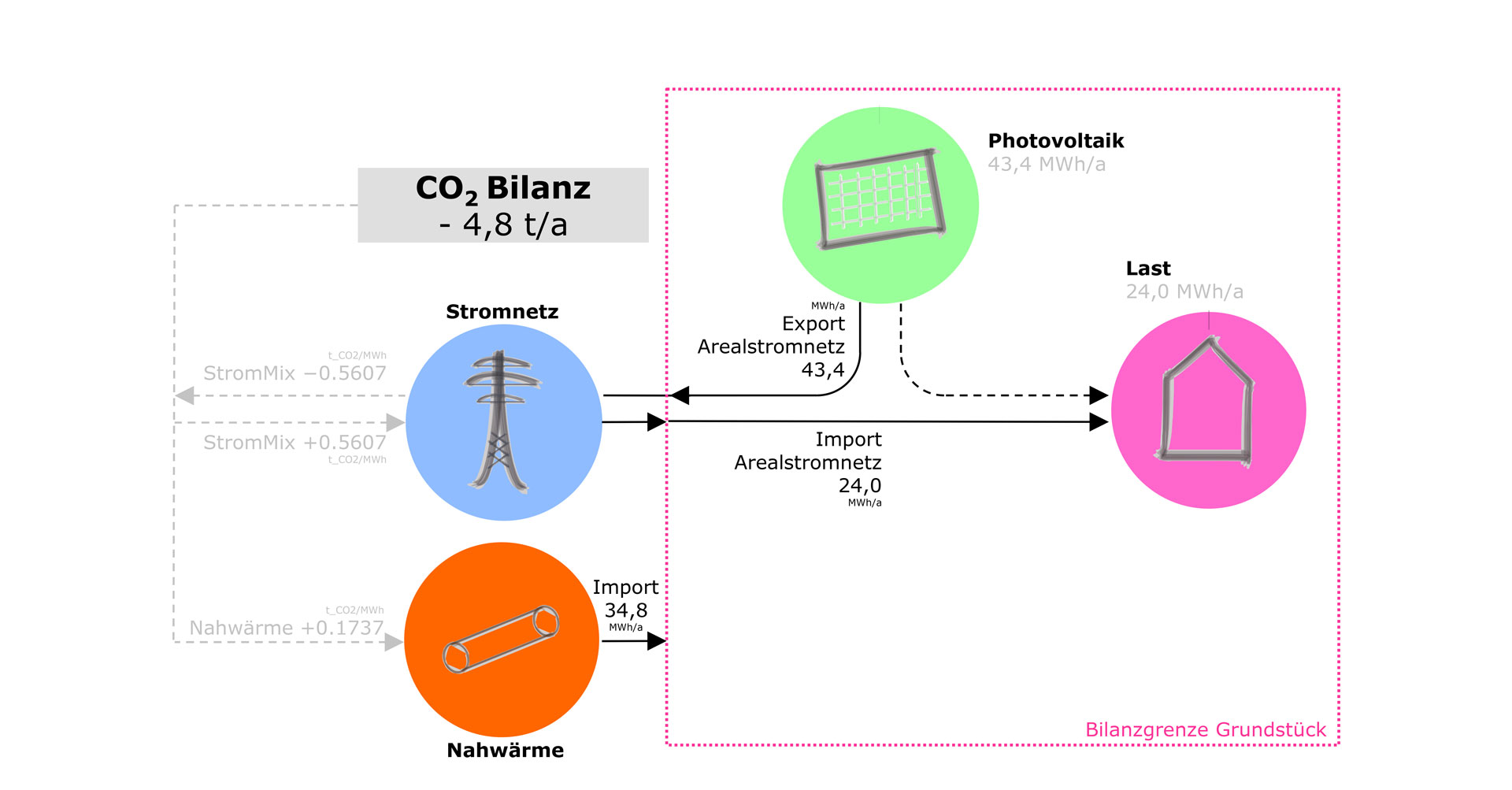

Monitoring – CO2-Bilanz; -4,2 tCO2

Climate-positive: Schubart-Gymnasium

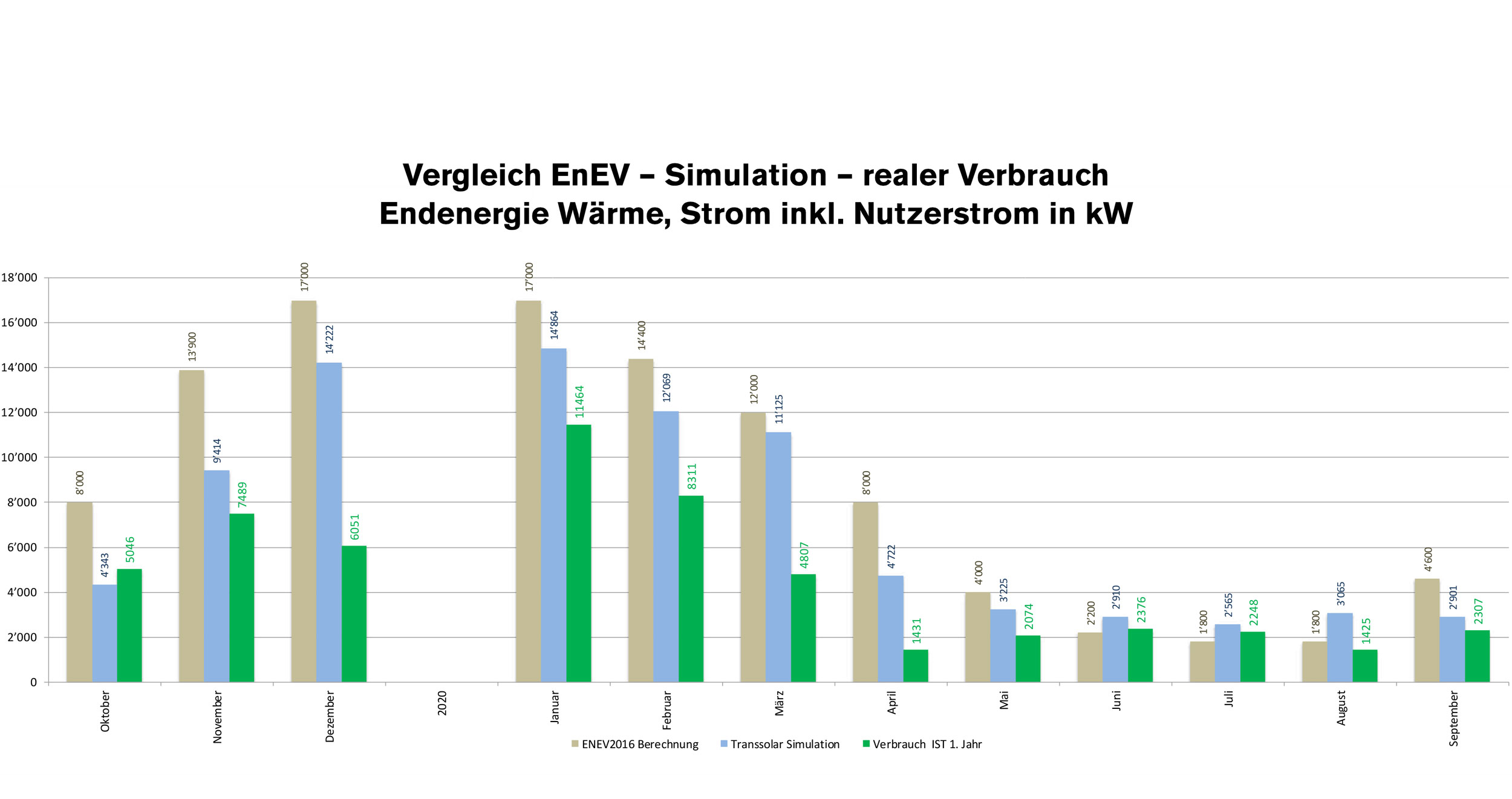

Vergleich EnEV-Simulation – Messung
